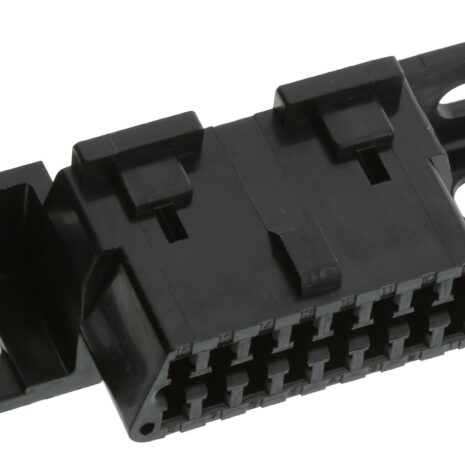

OBD II -connector housing (female port)

11,95 € + DHL or Economy shipping

When you need to access the ECU it is good to have easy access. Easy to mount OBD housing, comes with pins for connecting. (no cables). Read how to connect to ECU below.

  • Easy to mount
  • Small size
  • Comes with pins
  • Does not include wires
Generic - Products

In stock

World wide shipping!

  • Check Mark EU zone 1–3 working days
  • Check Mark Elsewhere in the world 2–8 working days
GUARANTEED SAFE CHECKOUT
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: OBD-FEMALE Categories: ,

Description

The product comes with 10pcs pin-connectors, connect like this:

4,5 ground,
7 ecu k-line
8 iqnition
16 12V

Electrical

  • Max Voltage: 30V
  • Max Current: 4.0A
  • Contact Resistance: 100 milliohms max.
  • Dielectric Withstanding Voltage: 1000V
  • Insulation Resistance: 100 Megohms min.

Mechanical

  • Contact Retention to Housing: 9.0kg min. (with 51118)
  • Wire Pull-Out Force: 9.0kg min. (AVS 0.5)
  • Mating Force: 11.23kg max./14.49kg max. (with spring)
  • Unmating Force: 8.97kg max.
  • Durability: 200 cycles

Physical

  • Housing: Black PBTP, UL 94V-0
  • Operating Temperature: -40 to +85˚C

Additional information

Weight 0,1 kg
