6bar Map sensor + coupling

63,75 € + DHL or Economy shipping

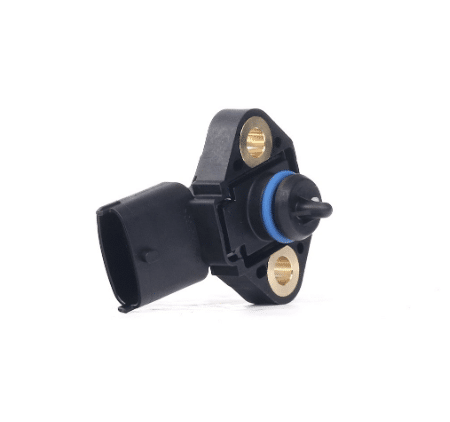

6 bar map sensor (manifold absolute pressure). Needed if you want to run higher boost levels. Our ECUs support this sensor, it measures -0,5 – 5bar (gauge pressure). The sensor fits 18mm hole.

  • New coupling included
  • Run up to 5 bars of boost (gauge pressure)
  • Integrated temperature sensor
Generic - Performance

In stock (can be backordered)

30 päivää maksuaikaa. Valitse maksutapa kassalla.

World wide shipping!

  • Check Mark EU zone 2–5 working days
  • Check Mark Elsewhere in the world 2–8 working days
GUARANTEED SAFE CHECKOUT
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: 6BARMAP Categories: ,

Description

Pin 1 = GND
Pin 2 = NTC (temp signal out)
Pin 3 = +5 V
Pin 4 = Map signal

Additional information

Weight 0,2 kg

Reviews

There are no reviews yet.

Be the first to review “6bar Map sensor + coupling”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Frequently Asked Questions

Does the ecu need software update when replacing map sensor?

Yes, the ecu needs a new linearization map since the sensor is not stock.

Does the map sensor give you more horsepower?

No, the sensor only measures pressure. However, with a sensor that can measure higher boost levels, it is possible to map an ecu for higher pressures, which would mean more horsepower. The stock turbocharger will not produce more boost with this sensor.
